iseg THQ 1, 2 eller 3 kanaler upp till 30kV, 60W

Art. nr: iseg THQ HV aggregat

Begär offert




Produktbeskrivning

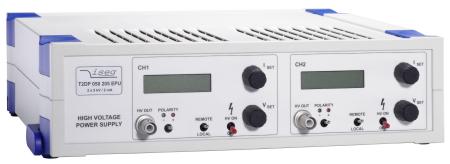

Desktop HV power supply with 1,2 or 3 channels.


Equipped with CPS, DPS or EPS HV modules (data see there)

  • Output voltages 500 V up to 30 kV
  • Output power up to 60 W per channel
  • High precision output voltage with very low ripple and noise
    with DPS modules
  • Free configurable LED display for voltage or current, switchable
  • Voltage setting via 10 turn potentiometer,
  • Analogue I/O on D Sub 9 or USB Interface

>> More info via iseg Website







Mer information

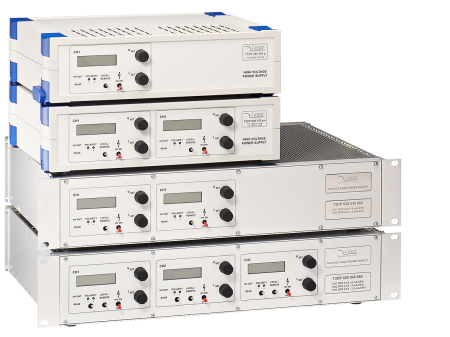

THQs are available as desk top power supplies with 1 or 2 channels or as 19 inch 2U units with 2 or 3 channels.

1-channel (desk top), 2-channel (desk top and 19 inch) and 3-channel (19 inch) versions with:
- high voltage modules CPS series
500 V up to 10 kV / max. 12 W - output power or
- high voltage modules DPS series
500 V up to 6 kV / max. 12 W - output power, with
polarity switchable, very low ripple and noise and very high stability

1-channel (desk top) and 2- and 3-channel (19 inch) versions with: - high voltage modules CPS series 15 kV up to 30 kV / max. 12 W - output power or - high voltage modules EPS series
500 V up to 30 kV / max. 60 W - output power

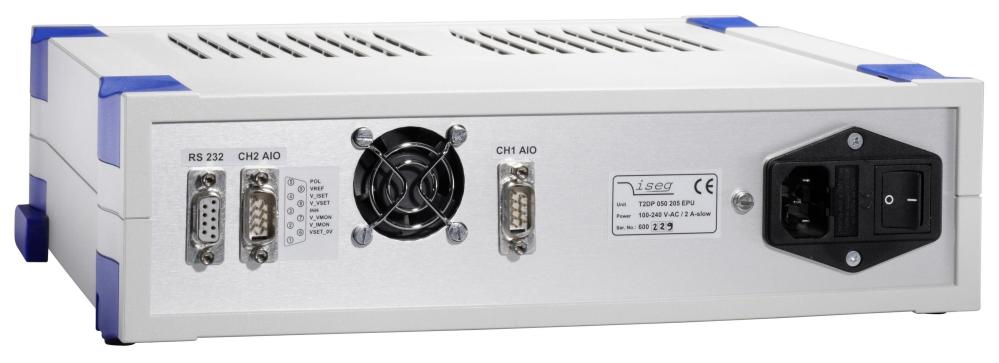

The control of the output voltage is made by the 10-turn potentiometer or via the analogue I/O (set voltage and monitor voltage 0 to 5 V) on a D Sub 9 connector or USB Interface on the rear.
Output voltage and current can be choosen on a switchable LED-display.
