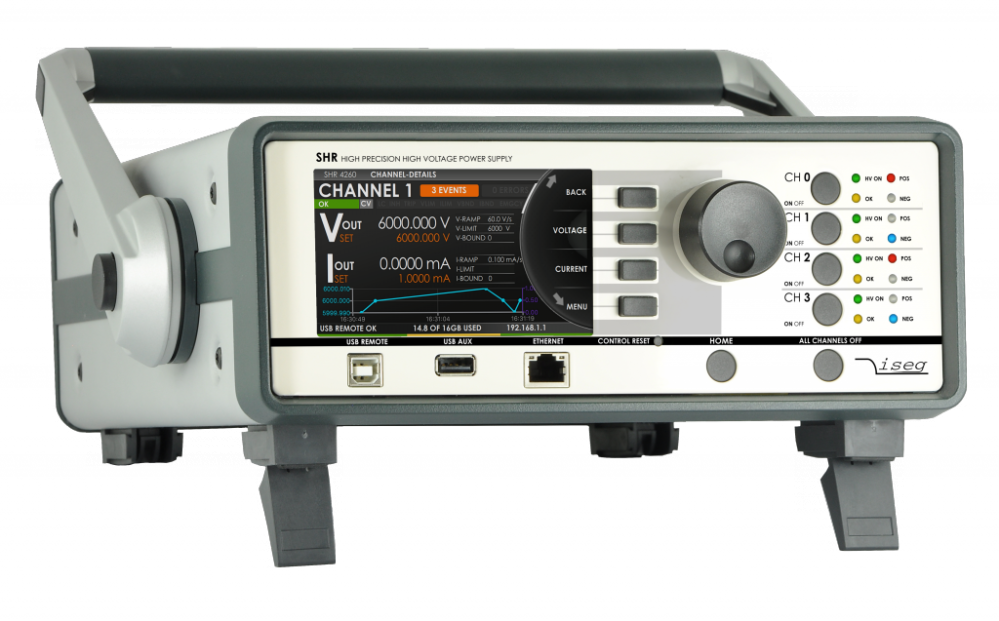

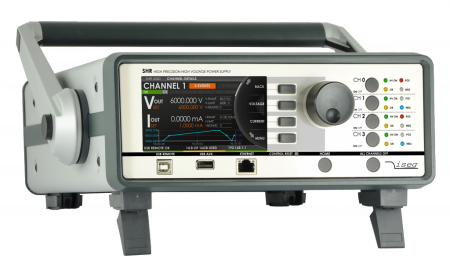

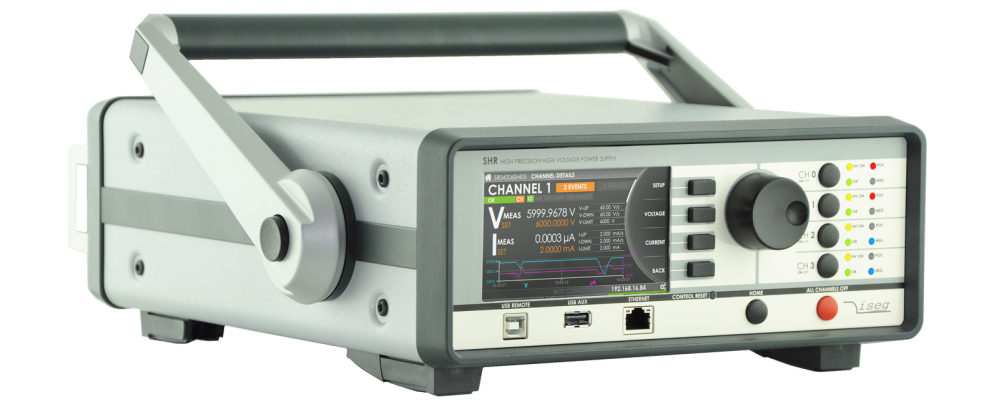

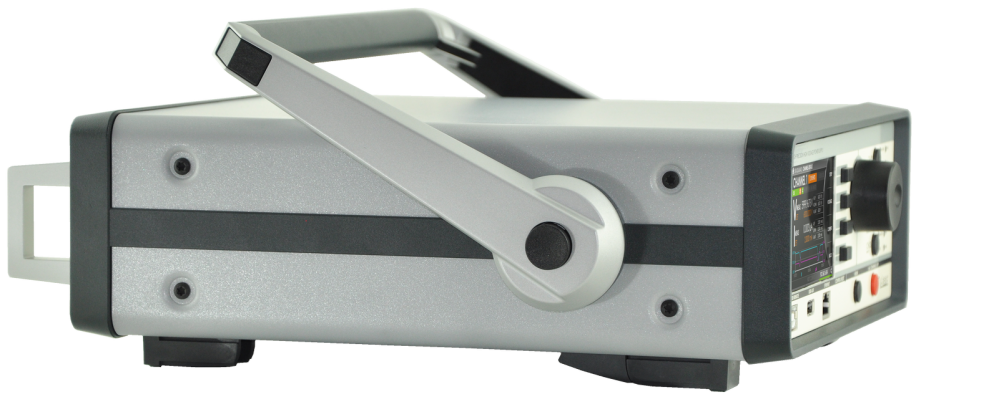

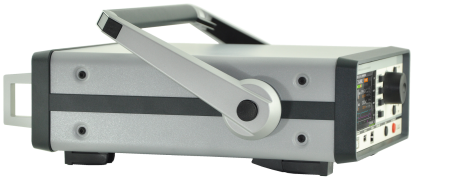

iseg SHR series - Switchable high end high precision AC/DC desktop HV supply, 2 / 4 channels, 2 kV / 6 kV versions

Art. nr: iseg SHR

Begär offert




Produktbeskrivning

  • 2 / 4 channels, 2 kV / 6 kV versions
  • electronically switchable polarity
  • 6 kV channel with electronical switchable modes: up to 2 kV/4 mA, 4 kV/3 mA or 6 kV/2 mA
  • high precision / very low ripple and noise
  • Ethernet / USB interfaces, integrated iCS2 on ARM Linux server hardware
  • 4.3" TFT capacitive touch display
The new SHR series represents standalone High Precision HV labratory SMU - Source Measuring Unit - equipped with thefinest iseg HV generation technology and iCS control system.





Dokumentation

pdf
Ladda ner datablad >>
pdf
Ladda ner manual >>



Mer information

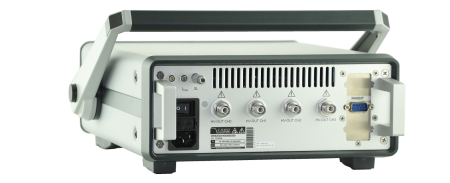

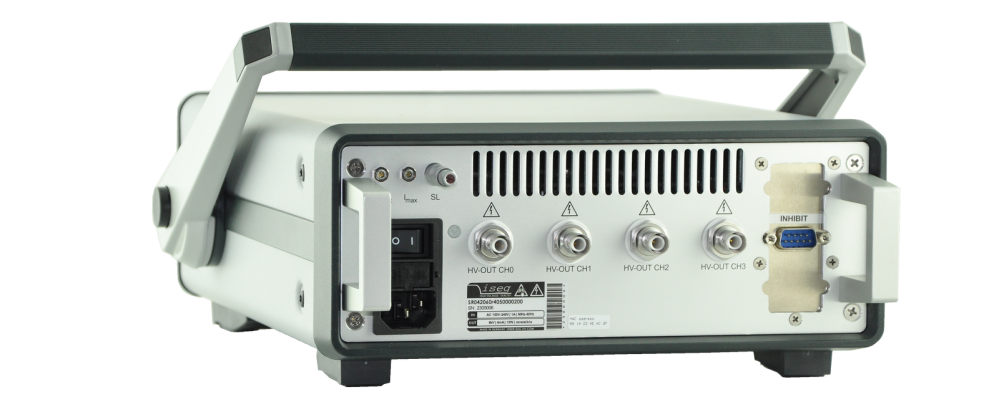

The SHR provides up to 4 HV-channels, each with an independent voltage and current control and reversible polarity.A completely new developed flexible 6kV channel provides a maximum versatility:

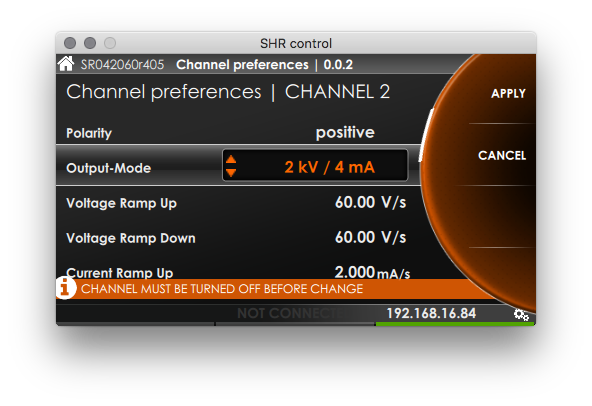

With three electronically switchable HV-generation modes it can supply 4 mA up to voltages of 2 kV, 3 mA up to 4 kV or 2 mAup to 6 kV.



Alternatively the SHR can be equipped with cost efficient 2kV/6mA fixed channels.

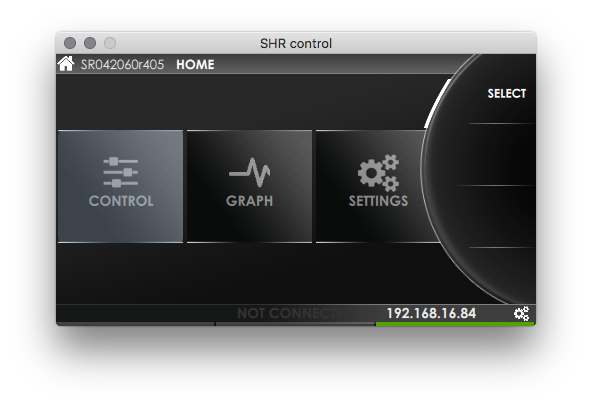

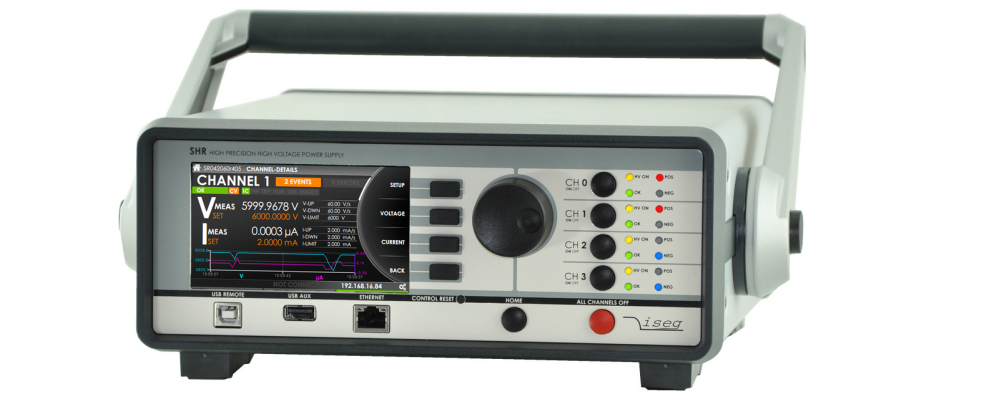

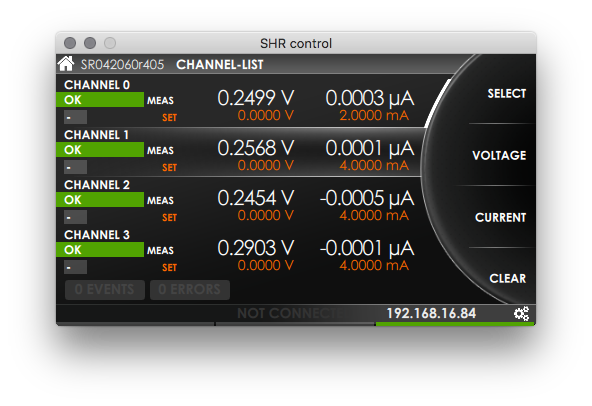

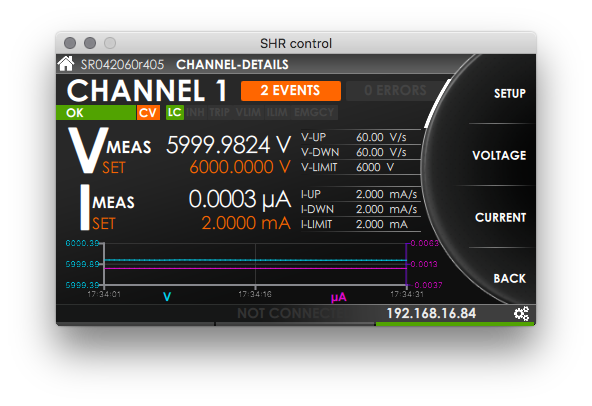

A high quality 4.3" TFT shows detailed information and can be controlled by capacitive touch.

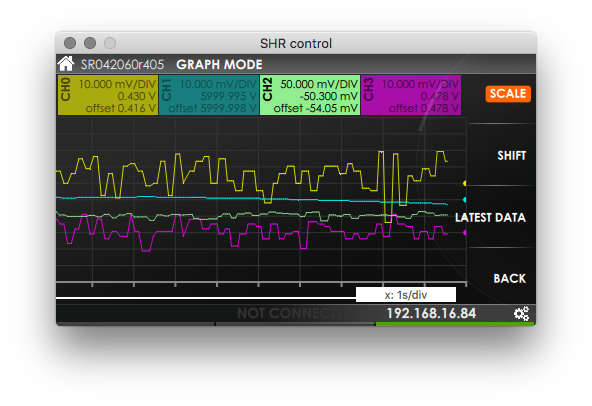

All comprehensive features like logging, graphical display and customer specific plugins are also available by the precise jog-wheel and buttons.
