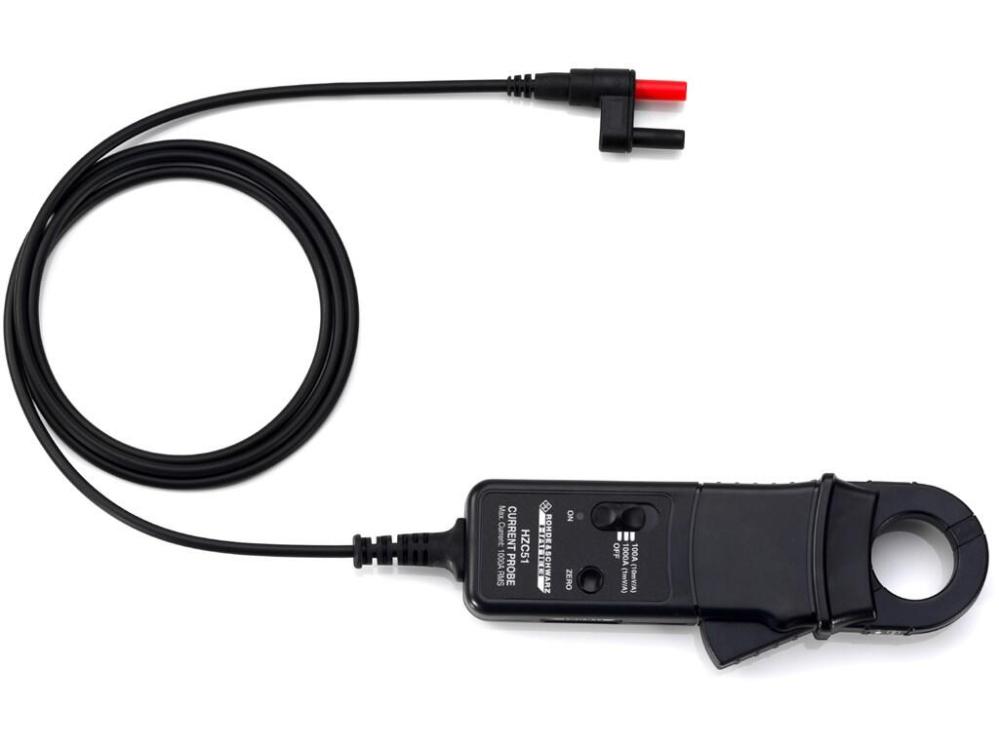

Rohde & Schwarz HZC51 AC/DC Current probe with 4mm plug, 1000A, DC...20kHz
Bilder
  • Rohde & Schwarz HZC51 AC/DC Current probe with 4mm plug, 1000A, DC...20kHz

Rohde & Schwarz HZC51 AC/DC Current probe with 4mm plug, 1000A, DC...20kHz

Art. nr: 71480
7 380 kr

Antal




Produktbeskrivning

This AC/DC Current Probe is used to measure currents from
100 mA to 1000 A over a broad frequency range. The measurement principle is based on the Hall Effect that registers the magnetic field generated by the current flow. Even for complex waveforms a high degree of measurement accuracy is achieved. The output voltage is proportional to the measured current and well suited to be displayed on an oscilloscope. The current probe complies with the safety standards defined in IEC/EN 61010.

  • Measurement range: ± 100 A /1000 A
  • Accuracy: ±1% from measurement value ±0,1A/±0,5A
  • Bandwidth: DC…20 kHz
  • Resolution: ± 100 mA/± 500 mA
  • Output voltage: 10 mV/A /1mV/A
  • Load impedance: › 100 kΩ II ≤ 100 pF
  • Max. Voltage: 300 Veff or DC
  • Output cable/Connector: 2 m (50Ω)/BNC
  • Measuring category: CAT III
